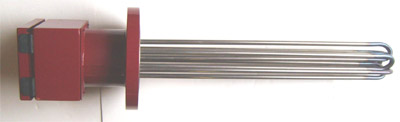

Metal Flanged Immersion Heaters

Metal Screw Plug Immersion Heaters

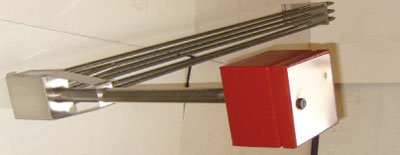

Incoloy L Style Immersion Heater

CAN WE DESIGN ONE FOR YOU?

(RECENT CUSTOM HEATER MODELS)

• ALL-IN-ONE "L" STYLE SYSTE WITH DIGITAL CONTROL AND 2 ON-OFF AND AC RECEPTICAL: MIDWEST MANUFACTURE OF PORTABLE PLATING EQUIPMENT ORDERS A SMALL TITANIUM "L" STYLE IMMERSION HEATER WITH A DIGITAL TEMPERATURE CONTROL MOUNTED ON THE RISER. THE DIGITAL CONTROLS OFFERS (2) ON-OFF SWITCHES AND AN AC RECEPTACLE. ONE SWITCH IS FOR THE DIGITAL CCONTROL AND THE SECOND SWITCH AND AC RECEPTACLE IS FOR AUXILIARY EQUIPMENT USED WITH HEATER AN CONTROL SYSTEM.

  Click Here To See Heater.


• "L" STYLE IMMERSION HEATER WITH OFF-SET RISER: A MIDWESTERN CUSTOMER REQUIRED A 316 STAINLESS STEEL "L" STYLE IMMERSION HEATER WITH AN OFF-SET VERTICAL RISER TO ALLOW EXTRA SPACE IN HIS TANK FOR ADJACENT EQUIPMENT IN THE TANK.

  Click Here To See Heater.


• FLANGED IMMERSION HEATER—LARGE 50,000 WATT 316 STAINLESS STEEL, LOW WATT DENSITY; COMPLETE WITH INTERNAL 75 AMP COMBINATION CONTROL INSIDE THE UNIT'S EXPLOSION PROOF, NEMA 4/7/9 TERMINAL BOX

  NOTE: THIS HEATER WAS BUILT/SOLD FOR A NEW CAUSTIC CHEMICAL STORAGE TANK FOR A KENTUCKY BASED CUSTOMER.

  Click Here To See Heater.


• "PITCH-FORK" STYLE IMMERSION HEATER—9,000 WATTS; 480 VOLTS; 3 PHASE & INCLUDES A "PILOT DUTY" THERMOSTAT LOCATED INSIDE THE HEATER'S NEMA 4/7/9 EXPLOSION PROOF TERMINAL BOX. THE HEATER'S IMMERSION LENGTH IS 168" & IT HAS A LOWER 6 ELEMENT HOT ZONE THAT IS 54" LONG. THE "PITCH-FORK" IMMERSION HEATER IS AVAILABLE IN STAINLESS STEEL & TITANIUM & WOULD BE IDEAL FOR DEEP TANK HARD CHROME HEATING APPLICATIONS ALSO.

  NOTE: THIS "PITCH-FORK" STYLE IMMERSION HEATER WAS DESIGNED AND SOLD TO A CENTRAL OHIO CUSTOMER FOR A CHEMICAL STORAGE TANK.

  Click Here To See "Pitch-Fork" Heater

  Click Here To See Titanium Product Illustration.


• 316 STAINLESS STEEL, LOW WATT DENSITY, VERTICAL STACK "L" STYLE IMMERSION HEATER INCLUDES CONVENIENT "HOIST HOLE PLATES" FOR EASY LIFT OUT FOR CLEANING AND MAINTENANCE.

  Click Here To See Heater.


• INCOLOY L STYLE IMMERSION HEATER: 18000 WATTS, 480 VOLTS, 3 PHASE. HEATER INCLUDES A NEMA 4 TERMIANL BOX WITH INTERNAL PILOT DIAL-SET THERMOSTAT. (DESIGNED FOR MAJOR AIRCRAFT MANUFACTURE).

  Click Here To See Heater.


• STEEL METAL TUBULAR IMMERSION HEATER WITH SEALED WELDED TERMINAL BOX FOR BLACK OXIDE AND OTHER HIGH TEMPERATURE PROCESS APPLICATIONS. (Designed for Kentucky Customer)

  Click Here To See Heater.


• 316 STAINLESS STEEL IMMERSION HEATER W/GOOSENECK & SPECIAL "SCREW-ON" TERMINAL BOX; 36,000 WATTS; VERTICAL STACK "L" STYLE & THIN PROFILE (Designed for Custom Tank of Georgia Customer)

  Click Here To See Heater.


• TITANIUM TUBULAR IMMERSION HEATER FOR CUSTOM DEEP TANK; 12,000 WATTS; SINGLE PHASE (Designed for a Hard Chrome Plating process in Michigan)

  Click Here To See Heater.


• FLUOROPOLYMER PTFE DEEP TANK CUSTOM HEATER; 15,000 WATTS; 480 VOLTS; 3 PHASE FOR ACID STORAGE TANK; HEATER INCLUDES CUSTOM MOUNTING PLATE OR FLANGE (Designed for Ohio Customer)

  Click Here To See Heater.


• CUSTOM INCOLOY “L” STYLE HEATERS; INCLUDE NPT THREADED RISER TO FIT SPECIAL HEATER TERMINAL BOX SUPPLED BY CUSTOMER. ALSO INCLUDES CUSTOM LENGTH SLUDGE FEET; 3000 WATT & 6000 WATT MODELS AVAILABLE (Designed for Major West Coast Aircraft Manufacturer)

  Click Here To See Heater.


• LOW-WATT DENSITY 316 STAINLESS STEEL FLAT PROFILE IMMERSION HEATER—FOR PROCESS HEATING APPLICATIONS WHERE TANK SPACE IS LIMITED; 3000 WATTS; 240 VOLTS; SINGLE PHASE (Designed for Minnesota Jewelry Manufacturer)

  Click Here To See Heater.


• FLUOROPOLYMER PORTABLE PLUG-IN IMMERSION HEATER; 1500 WATT; 120 VOLT WITH AC CORD & PLUG (Designed for Chemical Distributors in Kentucky & North Carolina to be Used in Mixing Small Amounts of Chemicals & Demonstrate Chemical Processes)

  Click Here To See Heater.


• 316 STAINLESS STEEL “L” STYLE IMMERSION HEATER—WITH GOOSE NECK; HEATER TERMINAL BOX IS ROTATED TO FACILITATE WIRING TO CONTROL; (Designed for Hydroponic Green House Farm)

  Click Here To See Heater.


• PORTABLE ALL-IN-ONE METAL “L” STYLE/CONTROL; 1500 WATT HEATER & CONTROL SYSTEM IDEAL FOR PORTABLE PLATING SYSTEMS (Designed for Use in Hard Chrome Plating)

  Click Here To See Heater.
