Products: Non Indicating Electro-Mechanical Dial Set Controls

• Amp Calculation for Control Selection

Base Dial Set Control

	M-30 Model Temp Range Amps Volts Sensor Length HN-30 32-250 30 120/24 5 Available replacement mechanism with bulb and cappillary sesnor shown near left (M-30).

Dial Set Combination Controls

	M-16 Model Amps Volts HN3024 HN5048 30 240 480 HN5024 HN3048 50 240 480 HN7524 HN7548 75 240 480 HN9024 HN9048 90 240 480 HN12024 HN12048 120 240 480 Available replacement mechanism with bulb and cappillary sensor shown at near left (M-16).

• Field Calibratable.
• Resettable Over-Temperature Bi-Met system (Combination Control only).
• Dial Set Temperature selection.
• Accuraacy +/- 7 degrees F.
• Supplied with a 5 Ft. bulb and capillary sensor with Fluoropolymer cover .
• NEMA 4X moisture resistant construction
• Canadian Voltages available (Combination Control only).

Products: Independent Conductivity Level Control

Independent Conductivity Probe Liquid Level Control

	(click image for installation guide) Stand Alone Conductivity Probe Assembly Models: HLLC-1 (120 V0lt) & HLLC-2 (240 Volt) 10 amps 120 / 240 Volts Conductivity level control shown complete with probe set. Note: Control and probe assemblies sold seperately. See probe set selections below

Probe Set Options

	Graphite probe shown. Other lengths available in stainless steel and titanium. Probe Set Selections Graphite, Stainless Steel & Titanium Model Material Length HGP-6 Graphite 6" HGP-12   12" HGP-18   18" HGP-24   24" HSP-6 316 Stainless 6" HSP-12   12" HSP-18   18" HSP-24   24" HTP-6 Titanium 6" HTP-12   12" HTP-18   18" HTP-24   24" Probe set (2) sold separately.

Remote Mount Conductivity Liquid Level Control

	(click image for installation guide) Stand Alone Conductivity Probe Assembly NEMA 4X TANK MOUNT PROBE BOX & REMOTE MOUNT CONTROL BOX 10 FOOT CORD STANDARD, EXTRA LENGTH AVAILABLE ADDITIONAL PROBE LENGTH AVAILABLE                           Click Here For More Details

Products: Controls

• Amp Calculation for Control Selection

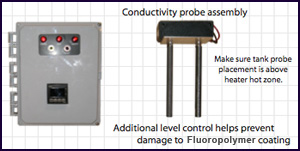

Digital Combination Controls with Conductivity Level Probes and Bimet Low Liquid Sensor

	Model Amps Volts HD3024-CP 30 208/240 HD3048-CP 30 480 HD5024-CP 50 208/240 HD5048-CP 50 480 HD9024-CP 90 208/240 HD9048-CP 90 480 (click probe assembly for PDF product illustration)

• Field calibratable.
• Resetable low liquid bi-met system.
• LED display and dual display.
• Selectable F/C display.
• Accuracy +/-1°.
• Supplied with 10 ft. "J" thermocouple (Fluoropolymer covered).
• Non-volatile memory.
• NEMA 4X moisure resistant construction.
• Canadian voltages available.
• Redundant conductivity sensor prevents damage to heater's fluoropolymer coating and guards against tank damage.
• Designed for Fluoropolymer heater applications.
• Temperature range: 0° - 1408°F.

Digital Combination Controls with Resetable Bimet Low Liquid Sensor

	Model Amps Volts HD3024 30 208/240 HD3048 30 480 HD5024 50 208/240 HD5048 50 480 HD9024 90 208/240 HD9048 90 480

• LED display and dual display.
• Selectable F/C display.
• Accuracy +/-1°.
• Temperature range: 0° - 1408°F / 0° - 800°C
• Supplied with 10 ft. "J" thermocouple (Fluoropolymer covered).
• Non-volatile memory.
• NEMA 4X moisure resistant construction.
• Field calibratable.
• Canadian voltages available.

EN100 Electronic Non-Indicating Controls

	Model Temp Range Max Amps Volts Senor Length (feet) EN100 50 to 250° 20 120/240 10

• Accuracy +/-2°F.
• "J" thermocouple sensor.
• Replacement temperature sensor.
• Corrosion resistant plastic enclosure.

Replacement Probe Assemblies

	Model Material Length (inches) HG6 Graphite 6 HG12 Graphite 12 HG18 Graphite 18

• Probes can be sold separately.

Products: Digital Temperature

• Amp Calculation for Control Selection

HD-16 Digital Temperature Control

	4"x4"x4" PVC Control Box Model Temp Range Amps Volts Sensor Length HD16-1 32-999 F 0-700 C 16 120 10 ft. HD16-2 32-999 F 0-700 C 16 240 10 ft. Ideal for smaller KW heaters and solenoid valve control.

• Bright LED display.
• Field Calibratable.
• Accuracy +/- 1 Degree.
• Supplied with a 10 Ft. “J” Thermocouple (FEP Fluoropolymer covered).
• Non-volatile Memory.
• Replacement Sensor available.
• NEMA 4X Box.

HDI Digital Temperature Indicator

	4"x4"x4" PVC Control Box Model Temp Range Volts Sensor Length HDI -58 to 302F 120 10 ft. Uses 10 ft. FEP Fluoropolymer covered thermistor sensor. Replacement sensor available. Available with optional 6 ft. AC cord and AC plug.
