Products: Fluoropolymer Covered Multi-Tubular Bayonet Heaters

Fluoropolymer Covered Dual Tubular Element Bayonet Heaters

Heat Star Systems (Single Phase Only) Heat Stary Systems

Fluoropolymer Covered Dual Tubular Element Bayonet Heaters
(click image for PDF
product illustration)

Available
Polypropylene
Guard

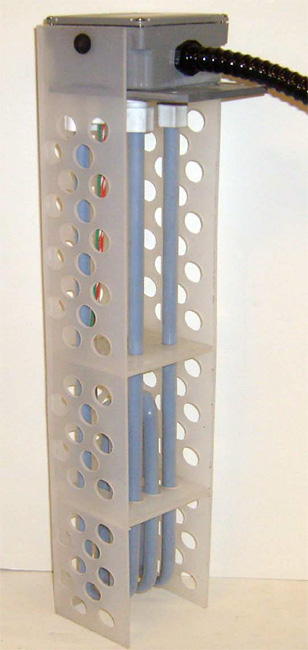

Fluoropolymer Covered Dual Tubular Element Bayonet Heaters
(click image for
larger version)

Model Watts Volts Hot Zone
Length
(H)
(in/mm)
Total
Length
(L)
(in/mm)
Cold Zone
Length
(H)
(in/mm)
Width
(in/mm)
2TM5105-L11
2TM5205-L11
500 120
240
5/127 11/279 6/152 3/76
2TM1.5110-L18
2TM1.5210-L18
1500 120
240
10/256 18/475 8/203 3/76
2TM1.5210-L22
2TM1.5410-L22
1500 120
240
10/256 22/559 12/305 3/76
2TM2214-L22
2TM2414-L22
2000 240
480
14/356 22/559 8/203 3/76
2TM2214-L28
2TM2414-L28
2000 240
480
14/356 28/711 14/356 3/76
2TM3220-L28
2TM3420-L28
3000 240
480
20/508 28/711 8/203 3/76
2TM3220-L34
2TM3420-L34
3000 240
480
20/508 34/864 14/356 3/76
2TM4226-L34
2TM4426-L34
4000 240
480
26/660 34/864 8/356 3/76
2TM4226-L40
2TM4426-L40
4000 240
480
26/660 40/1016 14/356 3/76
2TM5235-L45
2TM5435-L45
5000 240
480
35/889 45/1143 10/254 3/76
2TM5235-L50
2TM5435-L50
5000 240
480
35/889 50/1270 15/381 3/76
2TM6245-L55
2TM6445-L55
6000 240
480
45/1143 55/1397 10/254 3/76
2TM6245-L60
2TM6445-L60
6000 240
480
45/1143 60/1524 15/381 3/76
Heat Star Systems Heat Star Systems
  • Superior chemical resistance.
  • Low watt density.
  • Maximum operating temperature 180°.
  • Corrosion resistant heater head.
  • Includes low liquid thermal cut-off device to help prevent tank damage due to low liquid.
  • Rugged construction 30 mil PTFE coated stainless steel.
  • Polypropylene guard available.
  • Heater must be wired to separately purchased control. See controls section.

Fluoropolymer Covered Metal Tubular Bayonet Heaters 6 Element

Heat Star Systems (Three Phase Standard/One Phase Available) Heat Stary Systems

Fluoropolymer Covered Metal Tubular Bayonet Heaters 6 Element
(click image for PDF
product illustration)

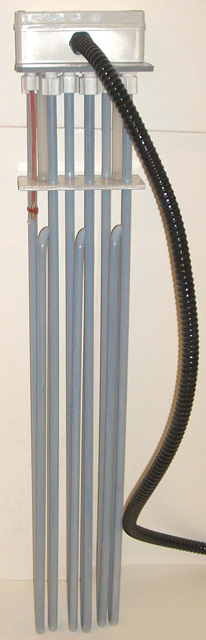

Fluoropolymer Covered Metal Tubular Bayonet Heaters 6 Element
(click image for
full size photo)

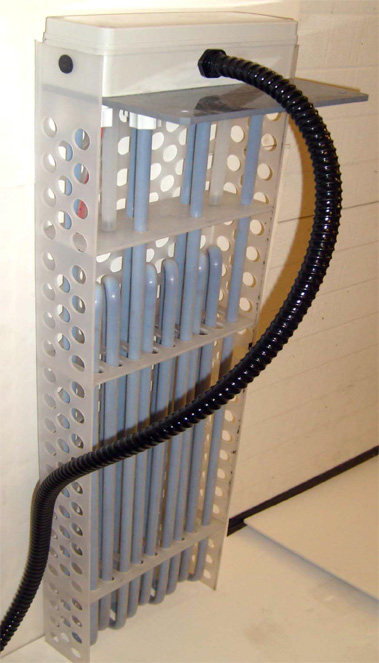

Available
Polypropylene
Guard

Fluoropolymer Covered Dual Tubular Element Bayonet Heaters
(click image for
larger version)

Model Watts Volts Hot Zone
Length
(H)
(in/mm)
Total
Length
(L)
(in/mm)
Cold Zone
Length
(H)
(in/mm)
Width
(in/mm)
6TM2.2210-L18
6TM2.2410-L18
2250 240
480
10/254 18/457 8/203 3/78
6TM2.2210-L22
6TM2.2410-L22
2250 240
480
10/254 22/559 12/305 3/78
6TM3214-L22
6TM3414-L22
3000 240
480
14/356 22/559 8/203 3/78
6TM3214-L28
6TM3414-L28
3000 240
480
14/356 28/711 14/356 3/78
6TM4.5220-L28
6TM4.5420-L28
4500 240
480
20/508 28/711 8/203 3/78
6TM4.5220-L34
6TM4.5420-L34
4500 240
480
20/508 34/864 14/356 3/78
6TM6226-L34
6TM6426-L34
6000 240
480
26/660 34/864 8/203 3/78
6TM6226-L40
6TM6426-L40
6000 240
480
26/660 40/1016 14/356 3/78
6TM7.5235-L45
6TM7.5435-L45
7500 240
480
35/889 45/1143 10/254 3/78
6TM7.5235-L50
6TM7.5435-L50
7500 240
480
35/889 50/1270 15/381 3/78
6TM9245-L55
6TM9445-L55
9000 240
480
45/1143 55/1397 10/254 3/78
6TM9245-L60
6TM9445-L60
9000 240
480
45/1143 60/1524 15/381 3/78
Heat Star Systems Heat Star Systems
  • Superior chemical resistance.
  • Low watt density.
  • Rugged construction 30 mil PTFE coated stainless steel.
  • Polypropylene guard available.
  • Heater must be wired to separately purchased control. See controls section.
  • Maximum operating temperature 180°.

Fluoropolymer Covered Metal Tubular Bayonet Heaters 9 Element

Heat Star Systems (Three Phase Standard/One Phase Available) Heat Stary Systems

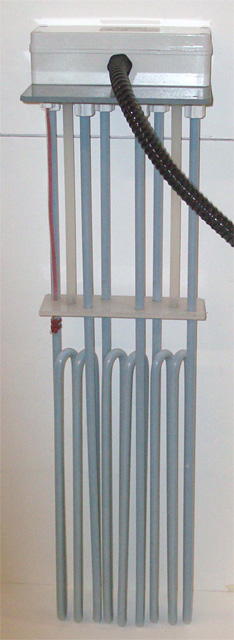

Fluoropolymer Covered Metal Tubular Bayonet Heaters 9 Element
(click image for PDF
product illustration)

Fluoropolymer Covered Metal Tubular Bayonet Heaters 9 Element
(click image for
full size photo)

Available
Polypropylene
Guard

Fluoropolymer Covered Dual Tubular Element Bayonet Heaters
(click image for
larger version)

Model Watts Volts Hot Zone
Length
(H)
(in/mm)
Total
Length
(L)
(in/mm)
Cold Zone
Length
(H)
(in/mm)
Width
(in/mm)
9TM6220-L28
9TM6420-L28
6000 240
480
20/508 28/711 8/203 3/78
9TM9226-L34
9TM9426-L34
9000 240
480
26/660 34/864 8/305 3/78
9TM12235-L45
9TM12435-L45
12000 240
480
35/889 45/1143 10/305 3/78
9TM15245-L55
9TM15445-L55
15000 240
480
45/1143 55/1397 10/203 3/78
Heat Star Systems Heat Star Systems
  • Superior chemical resistance.
  • Low watt density.
  • Rugged construction 30 mil PTFE coated stainless steel.
  • Polypropylene guard available.
  • Heater must be wired to separately purchased control. See controls section.
  • Maximum operating temperature 180°.

Fluoropolymer Covered Metal Tubular Bayonet Heaters 12 Element

Heat Star Systems (Three Phase Standard/One Phase Available) Heat Stary Systems

Fluoropolymer Covered Metal Tubular Bayonet Heaters 12 Element
(click image for PDF
product illustration)

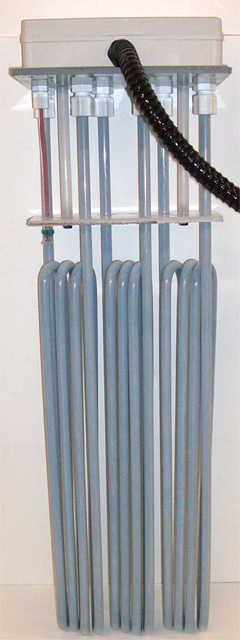

Fluoropolymer Covered Metal Tubular Bayonet Heaters 12 Element
(click image for
full size photo)

Available
Polypropylene
Guard

Fluoropolymer Covered Dual Tubular Element Bayonet Heaters
(click image for
larger version)

Model Watts Volts Hot Zone
Length
(H)
(in/mm)
Total
Length
(L)
(in/mm)
Cold Zone
Length
(H)
(in/mm)
Width
(in/mm)
12TM1.5105-L11
12TM1.5205-L11
1500 120
240
5/127 11/279 6/152 3/78
12TM1.5105-L18
12TM1.5205-L18
1500 120
240
5/127 18/475 13/330 3/78
12TM4.5210-L18
12TM4.5410-L18
4500 240
480
10/256 18/475 8/203 3/78
12TM4.5210-L22
12TM4.5410-L22
4500 240
480
10/256 22/559 12/305 3/78
12TM6214-L22
12TM6414-L22
6000 240
480
14/256 22/559 8/203 3/78
12TM6214-L28
12TM6414-L28
6000 240
480
14/256 28/711 14/356 3/78
12TM9220-L28
12TM9420-L28
9000 240
480
20/356 28/711 8/203 3/78
12TM9220-L34
12TM9420-L34
9000 240
480
20/508 34/864 14/356 3/78
12TM12226-L34
12TM12426-L34
12000 240
480
26/508 34/864 8/203 3/78
12TM12226-L40
12TM12426-L40
12000 240
480
26/660 40/1016 14/356 3/78
12TM15235-L45
12TM15435-L45
15000 240
480
35/889 45/1143 10/254 3/78
12TM15235-L50
12TM15435-L50
15000 240
480
35/889 50/1143 15/381 3/78
12TM18245-L55
12TM18445-L55
18000 240
480
45/1143 55/1270 10/254 3/78
12TM18245-L60
12TM18445-L60
18000 240
480
45/1143 60/1524 15/381 3/78
Heat Star Systems Heat Star Systems
  • Superior chemical resistance.
  • Low watt density.
  • Rugged construction 30 mil PTFE coated stainless steel.
  • Polypropylene guard available.
  • Heater must be wired to separately purchased control. See controls section.
  • Maximum operating temperature 180°.

Fluoropolymer Covered Metal Tubular Bayonet Heaters 18 Element

Heat Star Systems (Three Phase Standard/One Phase Available) Heat Stary Systems
Fluoropolymer Covered Metal Tubular Bayonet Heaters 18 Element
(click image for PDF
product illustration)

Fluoropolymer Covered Metal Tubular Bayonet Heaters 18 Element
(click image for
full size
product illustration)
Model Watts *Volts Hot Zone
(H)
(in/mm)
Total
Length
(L)
(in/mm)
Cold Zone
(C)
(in/mm)
Width
(in/mm)
18TM-326-L11
18TM-346-L11
3000 240
480
6/152
6/152
11/279
11/279
5/172
5/172
10/432
10/432
18TM-4.529-L17
18TM-4.549-L17
4500 240
480
9/229
9/229
17/432
17/432
8/208
8/203
10/432
10/432
18TM-6210-L17
18TM-6410-L17
6000 240
480
12/304
12/304
17/432
17/432
8/208
8/203
12/305
12/305
18TM-9215-L23
18TM-9415-L23
9000 240
480
15/381
15/381
23/584
23/584
8/208
8/203
12/305
12/305
18TM-12220-L29
18TM-12420-L29
12000 240
480
20/508
20/508
29/737
29/737
9/227
9/227
12/305
12/305
* Other Voltages available.
Heat Star Systems Heat Star Systems
  • Superior chemical resistance-acid heater.
  • Low watt density.
  • Maximum operating temperature 180°.
  • Corrosion resistant heater head.
  • Includes over temperature thermal cut-off device. Helps prevent tank damage.
  • Rugged construction 30 Mil PTFE control stainless steel.
  • Polypropylene guard available-as shown.
  • Heater must be wired to seperately purchased control. See controls section.
  • Three phase. Single phase optional.

See other Heat Star Fluoropolymer Heaters.

Caution: Fluoropolymer heaters are abrasion sensative. Place in tank away from parts in process.
